My Timer¶
Giriş¶
Bu projede Picobircks ile OLED ekran, buton ve potansiyometre modüllerini kullanarak kendi zaman ölçme aygıtını yapacaksın. Bir Timer…
Projenin Detayları ve Algoritması¶
Zaman ölçmek günlük hayatımızda farkına varmadan yaptığımız basit ama önemli bir iştir. Ameliyattaki cerrah, toplantısına yetişmeye çalışan bir iş insanı, kazanmaya çalışan sporcu, sınavı bitirmeye çalışan bir öğrenci ya da satranç müsabakası… Zaman ölçmek için akıllı kol saatleri, telefonlar hatta profesyonel kronometreler kullanılmaktadır. Elektronik sistemler içinde zaman oldukça doğru kullanılması gereken bir değişkendir. Örneğin bir Çamaşır makinesi; tamburun ne kadar süre saat yönünde ne kadar saat yönü tersine döneceği, deterjanı eritip alabilmek için kaç sn su akması gerektiği hep zaman ölçerek yapılan görevlerdir. Zamanın önemli olduğu projeler geliştirmek için onu nasıl kullanacağını bilmelisin.
PicoBricks başladığında ekrana projeyi tanıtan ve yönerge içeren bir ifade yerleştirelim. Kullanıcı potansiyometreyi çevirdikce 0-60 dakika
aralığında bir süre belirleyecek. Kullanıcı potansiyometre ile süreye karar verdikten sonra Picobricks’in butonuna bastığında dakika saniye ve salise ekranda geri doğru saymaya başlayacak. Eğer zaman geriye doğru akarken butona basılırsa Timer duracak ve kalan süreyi ekranda gösterecek. Butona basılmadan dakika, saniye ve salise sıfır değerine ulaşırsa ekrana sürenin dolduğunu ifade eden bildirim gösterilecek ve program durdurulacak.

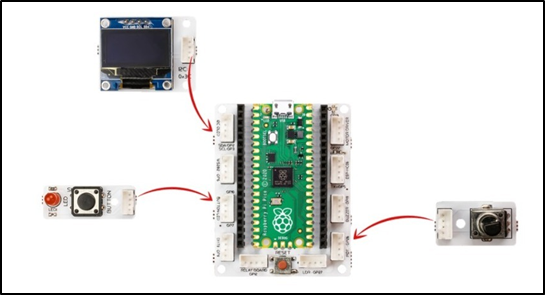

Bağlantı Diyagramı¶
Picobricks modüllerini herhangi bir kablo bağlantısı olmadan programlayabilir ve çalıştırabilirsiniz. Modülleri karttan ayırarak kullanacaksanız modül bağlantılarını verilen konektör kablolar ile yapmalısınız.
Projenin MicroPython Kodu¶
from machine import Pin, I2C, ADC, Timer #to acces the hardware picobricks
from picobricks import SSD1306_I2C #oled library
import utime #time library
WIDTH = 128
WEIGHT = 64
#define the width and height values
sda=machine.Pin(4)
scl=machine.Pin(5)
#we define sda and scl pins for inter-path communication
i2c=machine.I2C(0,sda=sda, scl=scl, freq=1000000)#determine the frequency values
oled = SSD1306_I2C(128, 64, i2c)
pot = ADC(Pin(26))
button = Pin(10,Pin.IN,Pin.PULL_DOWN)
#determine our input and output pins
oled.fill(0)
oled.show()
#Show on OLED
time=Timer()
time2=Timer()
time3=Timer()
#define timers
def minute(timer):
global setTimer
setTimer -=1
def second(timer):
global sec
sec-=1
if sec==-1:
sec=59
def msecond(timer):
global msec
msec-=1
if msec==-1:
msec=99
#We determine the increments of the minute-second and millisecond values.
sec=59
msec=99
global setTimer
while button.value()==0:
setTimer=int((pot.read_u16()*60)/65536)+1
oled.text("Set timer:" + str(setTimer) + " min",0,12)
oled.show()
utime.sleep(0.1)
oled.fill(0)
oled.show()
#If the button is not pressed, the value determined by the potentiometer is printed on the OLED screen.
setTimer-=1
time.init(mode=Timer.PERIODIC,period=60000, callback=minute)
time2.init(mode=Timer.PERIODIC,period=1000, callback=second)
time3.init(mode=Timer.PERIODIC,period=10, callback=msecond)
#We determine the periods of minutes, seconds and milliseconds.
utime.sleep(0.2)#wait for 0.2 second
while button.value()==0:
oled.text("min:" + str(setTimer),50,10)
oled.text("sec:" + str(sec),50,20)
oled.text("ms:" + str(msec),50,30)
oled.show()
utime.sleep(0.008)
oled.fill(0)
oled.show()
if(setTimer==0 and sec==0 and msec==99):
utime.sleep(0.1)
msec=0
break;
#When the button is pressed, it prints the min-sec-ms values to the OLED screen in the determined x and y coordinates.
oled.text(str(setTimer),60,10)
oled.text(str(sec),60,20)
oled.text(str(msec),60,30)
oled.text("Time is Over!",10,48)
oled.show()
#Print the minutes, seconds, milliseconds and "Time is Over" values to the X and Y coordinates determi
Tüyo
Eğer kodunuzun adını main.py olarak kaydederseniz, kodunuz her BOOT
yaptığınızda çalışacaktır.
Projenin Arduino C Kodu¶
#include <Wire.h>
#include "ACROBOTIC_SSD1306.h"
int minute;
int second = 59;
int milisecond = 9;
int setTimer;
void setup() {
// put your setup code here, to run once:
pinMode(10,INPUT);
pinMode(26,INPUT);
Wire.begin();
oled.init();
oled.clearDisplay();
}
void loop() {
// put your main code here, to run repeatedly:
oled.setTextXY(1,2);
oled.putString("<<My Timer>>");
oled.setTextXY(3,1);
oled.putString("Please use the");
oled.setTextXY(4,1);
oled.putString("Potantiometer");
oled.setTextXY(5,0);
oled.putString("to set the Timer");
delay(3000);
oled.clearDisplay();
while(!(digitalRead(10) == 1))
{
setTimer = (analogRead(26)*60)/1023;
oled.setTextXY(3,1);
oled.putString("set to:");
oled.setTextXY(3,8);
oled.putString(String(setTimer));
oled.setTextXY(3,11);
oled.putString("min.");
}
oled.clearDisplay();
oled.setTextXY(1,1);
oled.putString("The Countdown");
oled.setTextXY(2,3);
oled.putString("has begin!");
while(!(digitalRead(10) == 1))
{
milisecond = 9- (millis()%100)/10;
second = 59-(millis()%60000)/1000;
minute = (setTimer-1)-((millis()%360000)/60000);
oled.setTextXY(5,3);
oled.putString(String(minute));
oled.setTextXY(5,8);
oled.putString(String(second));
oled.setTextXY(5,13);
oled.putString(String(milisecond));
oled.setTextXY(5,6);
oled.putString(":");
oled.setTextXY(5,11);
oled.putString(":");
}
oled.setTextXY(5,3);
oled.putString(String(minute));
oled.setTextXY(5,8);
oled.putString(String(second));
oled.setTextXY(5,13);
oled.putString(String(milisecond));
oled.setTextXY(5,6);
oled.putString(":");
oled.setTextXY(5,11);
oled.putString(":");
delay(10000);
if (minute==0 & second==0 & milisecond==0){
oled.setTextXY(5,3);
oled.putString(String(minute));
oled.setTextXY(5,8);
oled.putString(String(second));
oled.setTextXY(5,13);
oled.putString(String(milisecond));
oled.setTextXY(5,6);
oled.putString(":");
oled.setTextXY(5,11);
oled.putString(":");
oled.putString("-finished-");
oled.setTextXY(7,5);
delay(10000);
}
}

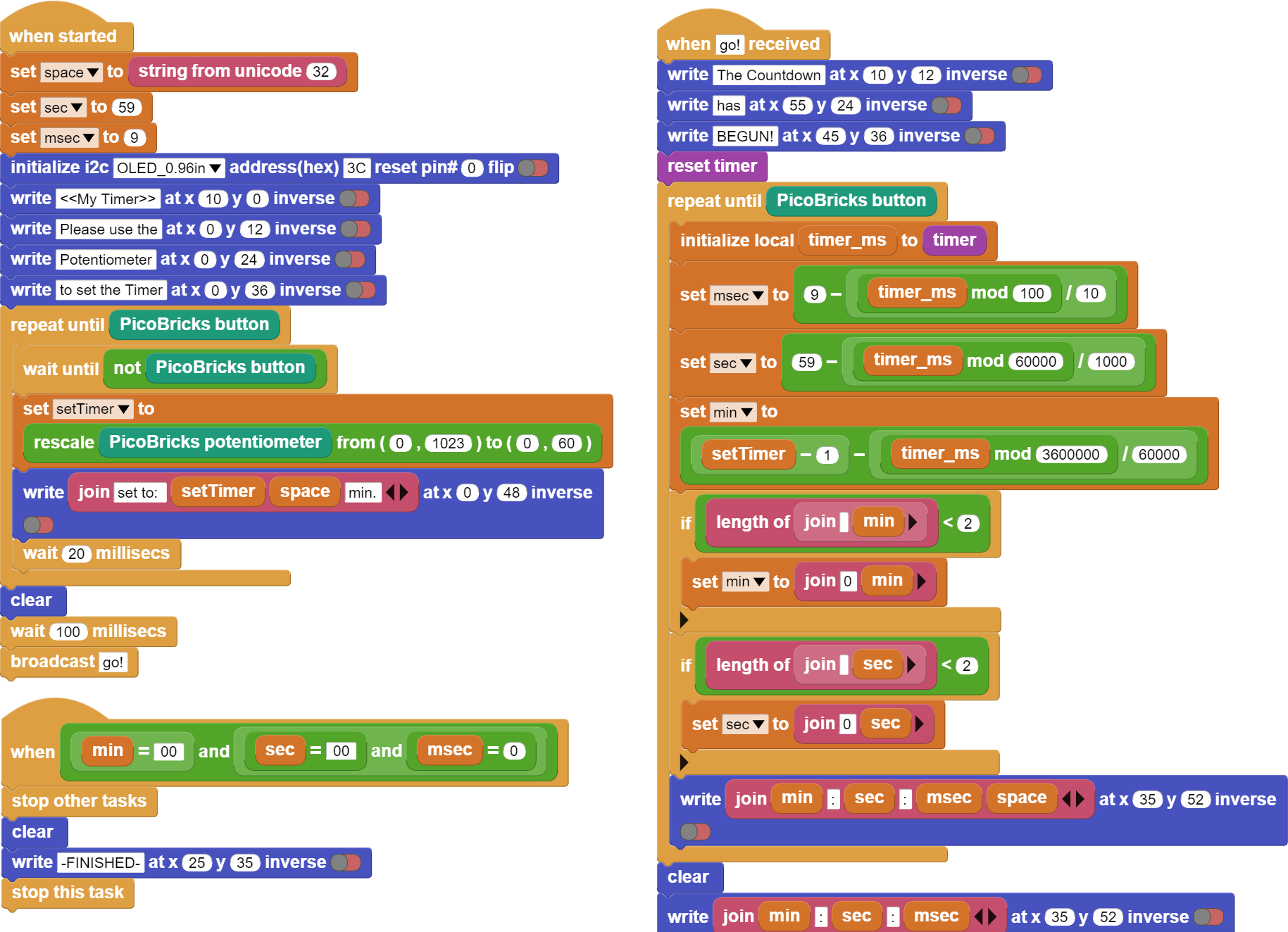

Projenin MicroBlocks Kodu¶
Not
MicroBlocks ile kodlama yapmak için yukarıdaki görseli MicroBlocks Run sekmesine sürükleyip bırakmanız yeterlidir.
